Double System Intarsia Computerized Flat Bed Knitting Machine

Changshu Guosheng Knitting Machinery Factory
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

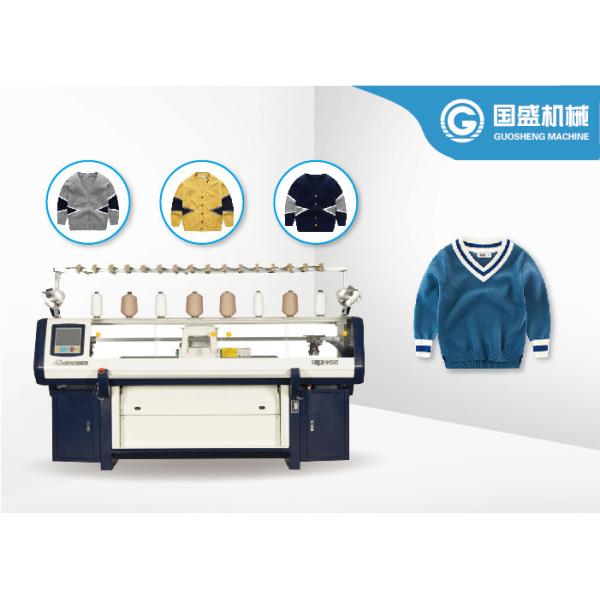

Double System Intarsia Computerized Flat Bed Knitting Machine

Brand Name : GANGJI

Model Number : GSJX-2-52

Certification : CE ISO

Place of Origin : Jiangsu, China

MOQ : 1 Set/Sets

Price : negotiable

Payment Terms : T/T, L/C, Western Union, MoneyGram, D/P, D/A

Supply Ability : 1500 Set/Sets per month

Delivery Time : 10-15 working days

Packaging Details : plastic package+vacuum package+wooden package+iron frame

Product name : School Uniform Intarsia Computerized Flat Bed Knitting Machine Factory Price

Knitting Method : Double System Flat Knitting

Knitting width : 52 inch

Gauge : 3-16 G

Power(W) : 1.3KW

Condition : Brand New

Computerized : Computerized

Port : SHANGHAI/NINGBO/QINGDAO/GUANGZHOU......

Warranty : One year(not including easily damaged parts)

Contact Now

School Uniform Intarsia Computerized Flat Bed Knitting Machine Factory Price

PRODUCT DESCRIPTION

Flat knitting machine can knit basic stitch like plain stitch, rib fabric, links and links, interlock stitch, etc. irregular multi color jacquard, twit flowers weft organization, cord weave, racked stitch, cable, etc.
Flat knitting machine is suitable to use synthetic, wool, acrylic, mixed fiber, yarn material etc to knit sweater,collar,shoe upper,school uniform.ready-made cardigan, hat,scarf and accessories of cloth.

PRODUCT FEATURES

Model GSJX-2-52
Gauge 3G,3.5G,3-5-7G,5G,6G,7G,8G,9G,10G,12G,13G,14G,15G
Knitting System Double System Single Carriage
Knitting Width 52 Inch
Knitting Speed 1.2m/S Max.1.2m/Sec
Knitting Function Tranfer,Tuck,Miss,Jacquard,Intarsia,Hide Or Apparent Shaping.
Stitch Density Stitch System Controlled By Stepping Motor,32 Section Stitch Selectable,Adjustable Scope Supported By Subdivision Technology:0-650
Racking Controlled By Ac Servo Motor,Racking Within 2 Inches And With Fine Adjustiing Function.
Drive System Synchronous Belt Drive,Ac Servo System
Needle Selection Controlled By Computer,Electric Magnet Needle Choose System With High Efficiency.
Scissor And Clamp Including 2 Scissor And 4 Clamps ,Which Individually Controlled By 6 Motors Separately,Located The Both Of Needle Bed Separately,Further To Increase The Work Efficiency And To Reduce Yarn Consumption.
Yarn Carrier 2x8yarn Carriers On Each Side Of 4 Guide Rails,Shiftable On Any Needle Position
Take Down Roller Programmed Instruction Controlled By Stepping Motor,32 Section Levels Selection Adjustable Area:0-100
Sinker System Assist Knitting,Have Various Results Of Shaping And Stop.
Protection System The Machine Will Automatically Alarm If Yarn Breaking,Float Yarn,Rewind,End Of Knitting,Fail Of Racking,Needle Breakage And Error Programming Occur Ect.
Control System 1,Adopt Lcd Screen,Input Device:Usb,System Memory 256mb,A Great Amount Of Design Files Can Be Stored.2,Monitoring Menu,Each Kind Of Operating Parameter,Can Be Shown,And They Can Be Adjusted At Any Time When The Machine Is Running.3,Design System Is Visual And Easy To Understand And Upgrad.4,Multi Language Version,There Are Chinese,English Etc.
Power 220v ,Single-Phase,Have Memorizing Function At The Power-Off Moment



PRODUCT DETAILS

LCD DISPLAYER
Machine adopts industry LCD display with touch control,all time monitoring function.The data of knitting amount,time,speed,roller,density,yarn carrier etc,is clearly shown and can be adjusted in the process.It is most convenient and efficient way to amend the data.

CONTINUOUS KNITTING
The machine has the function of continuous knitting. Different patterns can be woven circularly. When several different pattern files need to be woven, only all the pattern files to be executed need to be stored in a unified way. After the selected pattern is woven, the machine will automatically select its remaining patterns for weaving, which not only saves time and yarn use, but also facilitates the production management of customers.


SINKER SYSTEM
Flat knitting machine for knitting needle movement in the rise and fall with the regularity of the moment,to achieve the stitch transfer,stitch press off,stitch knit,stitch tuck such as knitting effects,need to help latch needle from sinker to complete,improve the capacity of weaving.Sinker control system make the function of sinker adjustable to achieve.

YARN TRANSPORTATION DEVICE
The yarn transportation device is installed between the yarn bucket and knitting system,which greatly improves the uneven tension caused by overlong yarn journey,When then yarn is sued up or breakage of yarn takes place due to any reason,the sensor in the yarn transportation device will alarm and the machine stops working.This prevents the broken yarn from entering then knitting area,making the connection of yarn easily and avoiding the damages to the quality of fabrics.

POWER FAILURER PROTECTION
With power failure protection,the machine is able to automatically memorize the data upon power failure the and recover the data when the power is restored,so that the machine can continue the pending work according the programmed patterns,which avoids the waste of yarn ans saves the time,without compromising the quality of the fabrics.

SIDE YARN BRACKET
The side yarn bracket adopts high performance springs to exert direct force to the part of yarn-picking.In addition to the function of transferring the yarn with a certain tension to the knitting ear,it is also able to pick up the redundant yarn when the carriage stops moving upon change of the direction,making the yarn tensed under a certain tension,so as to ensure the normalized knitting.The side yarn bracket has safely alarms,which has sensors that are immune to the interference from the environment,capable of keeping their sensitivity from the beginning to the end.

Double System Intarsia Computerized Flat Bed Knitting Machine

APPLICATION FIELDS

Double System Intarsia Computerized Flat Bed Knitting Machine

ABOUT US

Changshu Guosheng Knitting Machinery Factory, established in 1992, located in Changshu city, near Shanghai, is a professional manufacturer engaged in the research, development, production, sale and service of Computerized flat knitting machine, Shoe upper knitting machine, Winding machine, Linking machine, Placket machine.

There are two major brand which are “YIMA” and “GANGJI”. The company covers an area of 30, 000 suqare meters, nearly 400 staff and annual output for 10, 000 sets.

We aim to become the most innovative and the most competitive textile equipment manufacturers. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment.


Double System Intarsia Computerized Flat Bed Knitting Machine

STRONG AFTER-SALE SERVICE TEAM

You will get free machine operation training & pattern-designing training as soon as you buy our machine.
Mature and attentive service is what Guosheng hold as the principle of service,machine operation training for free and pattern-designing training for free to free customers from all the worries.

Double System Intarsia Computerized Flat Bed Knitting Machine


CERTIFICATIONS

Double System Intarsia Computerized Flat Bed Knitting Machine
